WEIGHT-SUPPORTED RANDOM FOREST DOWNSCALED GRACE (-FO) DATA UNCOVERS GROUNDWATER DEPLETION LINKED TO WINTER WHEAT CULTIVATION IN THE NORTH CHINA PLAIN
This study focuses on the Lower Indus Basin (LIB), where unsustainable groundwater extraction for irrigation demand is a critical issue. The standard solution, satellite gravity from GRACE and GRACE-Follow-On (GRACE-FO), provides valuable data on Total Water Storage Anomalies (TWSA), but its coarse spatial resolution (approximately 1°) is insufficient for localized water management. To overcome this spatial limitation, the research team developed and implemented a novel machine learning pipeline using a Weight-Supported Random Forest (WSRF) model. This model downscaled the coarse GRACE-derived data to a much finer 0.1° spatial resolution. The downscaling was achieved by training the WSRF model on a suite of independent, higher-resolution predictor variables, specifically: Precipitation (P), Evapotranspiration (ET), Normalized Difference Vegetation Index (NDVI), and Soil Moisture (SM). The resulting high-resolution GRACE-like products were validated with exceptionally high accuracy against actual piezometric well measurements, demonstrating a strong correlation coefficient (R2 > 0.85). The spatial downscaling revealed detailed, localized patterns of groundwater depletion that were obscured in the original coarse data. Analyzing the trends from 2003 to 2023 showed that this depletion is not solely a climatic event but is closely coupled with climate variability (including major drought events) and significantly driven by irrigation practices essential for regional agriculture, highlighting that this methodology provides a crucial tool for sustainable water management.
Graphical Abstract: The figure presents a detailed graphical representation of the methodology employed to downscale GRACE (-FO) derived GWSA data for evaluating groundwater storage distribution.
THE CHALLENGE
Groundwater is critical for agriculture in the Lower Indus Basin, yet direct measurements (piezometers) are sparse. The GRACE and GRACE-FO (Gravity Recovery and Climate Experiment) satellite missions provide essential data on Total Water Storage Anomaly (TWSA).
However, GRACE data is coarse (approx. 100 km x 100 km spatial resolution)—too coarse to observe local changes caused by individual irrigation canals or specific climatic impacts.
HIGHLIGHTS:
- The RFSW model’s predictions reduced RMSE and residuals by 44.44% and 43.57%, respectively, compared to the RFG model’s.
- GWSA obtained from RFSW downscaled GRACE(-FO) data indicates a higher declining trend in the PP sub-region of the NCP.
- Variations in GWSA within the NCP indicate that winter wheat primarily contributes to groundwater depletion via irrigation practices.
Keywords North china plain · GRACE (-FO) · GWSA · RFSW· Downscaling · Winter wheat

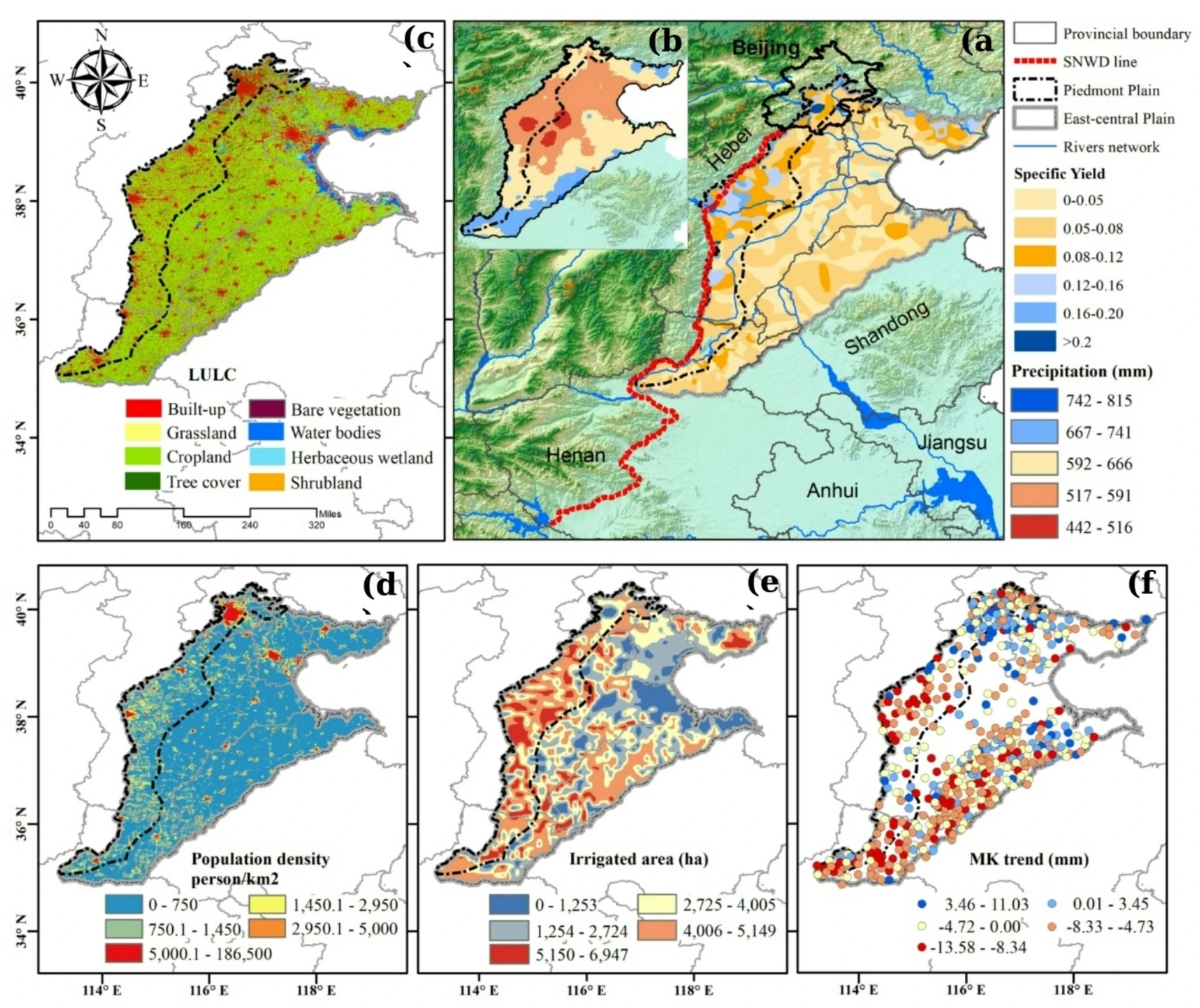

Figure 1. (a)The 3D background layer created in ArcGIS based on the Digital Elevation Model (DEM), along with the colour-coded map, illustrates the spatial variation of specific yield (Sy), (b) the long-term mean (2003–2023) annual precipitation, (c) land use land cover map derived from Google Earth Engine (GEE), (d) population density per person in NCP derived using GEE, (e) irrigation at pixel’s scale (Siebert et al. 2015), and (f) the long-term (2005–2018) Mann Kendall trends of groundwater level data

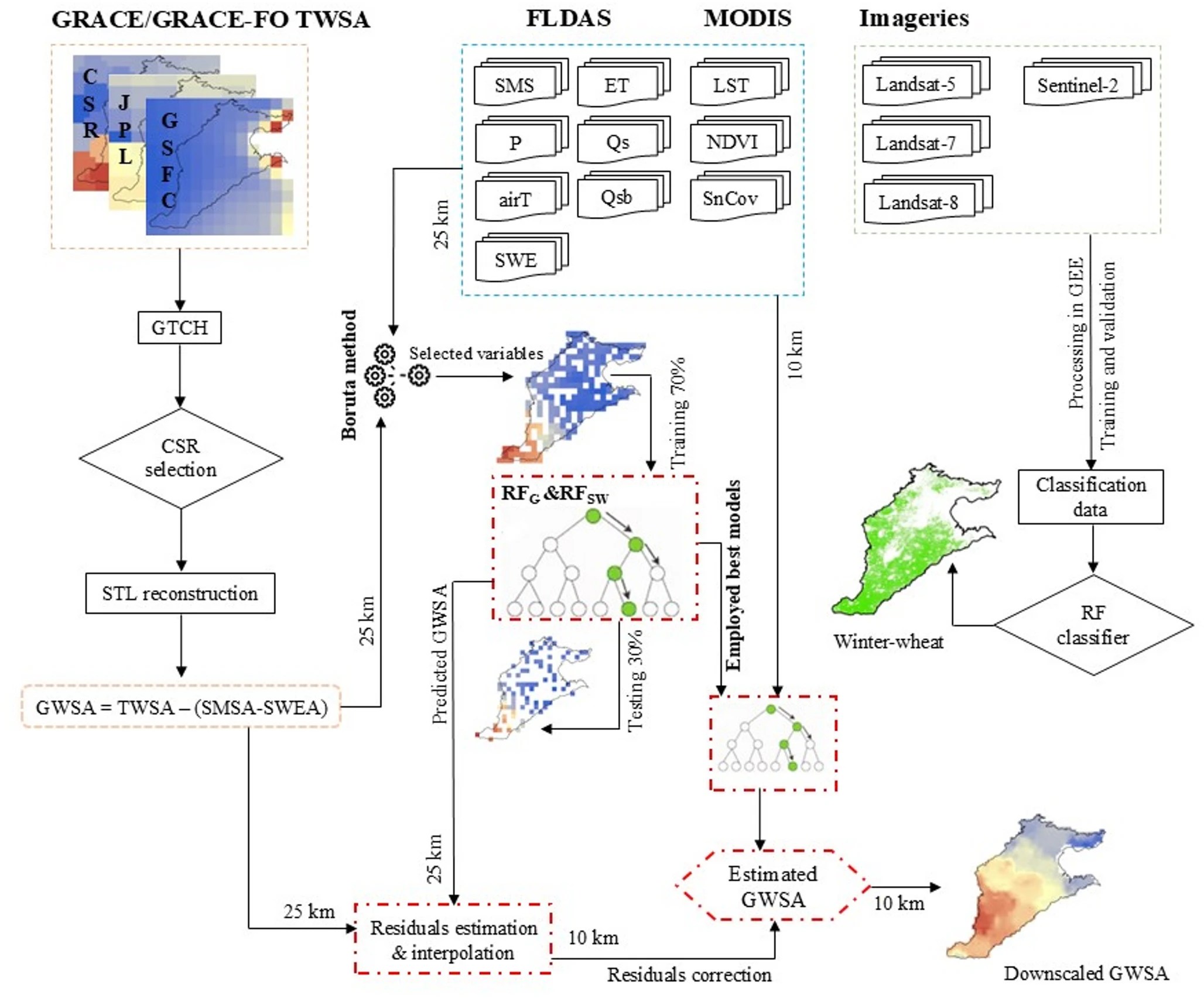

Figure 2. A downscaling framework of GWSA driven from GRACE/GRACE-FO to 0.1° from 0.25° resolution over the region of NCP

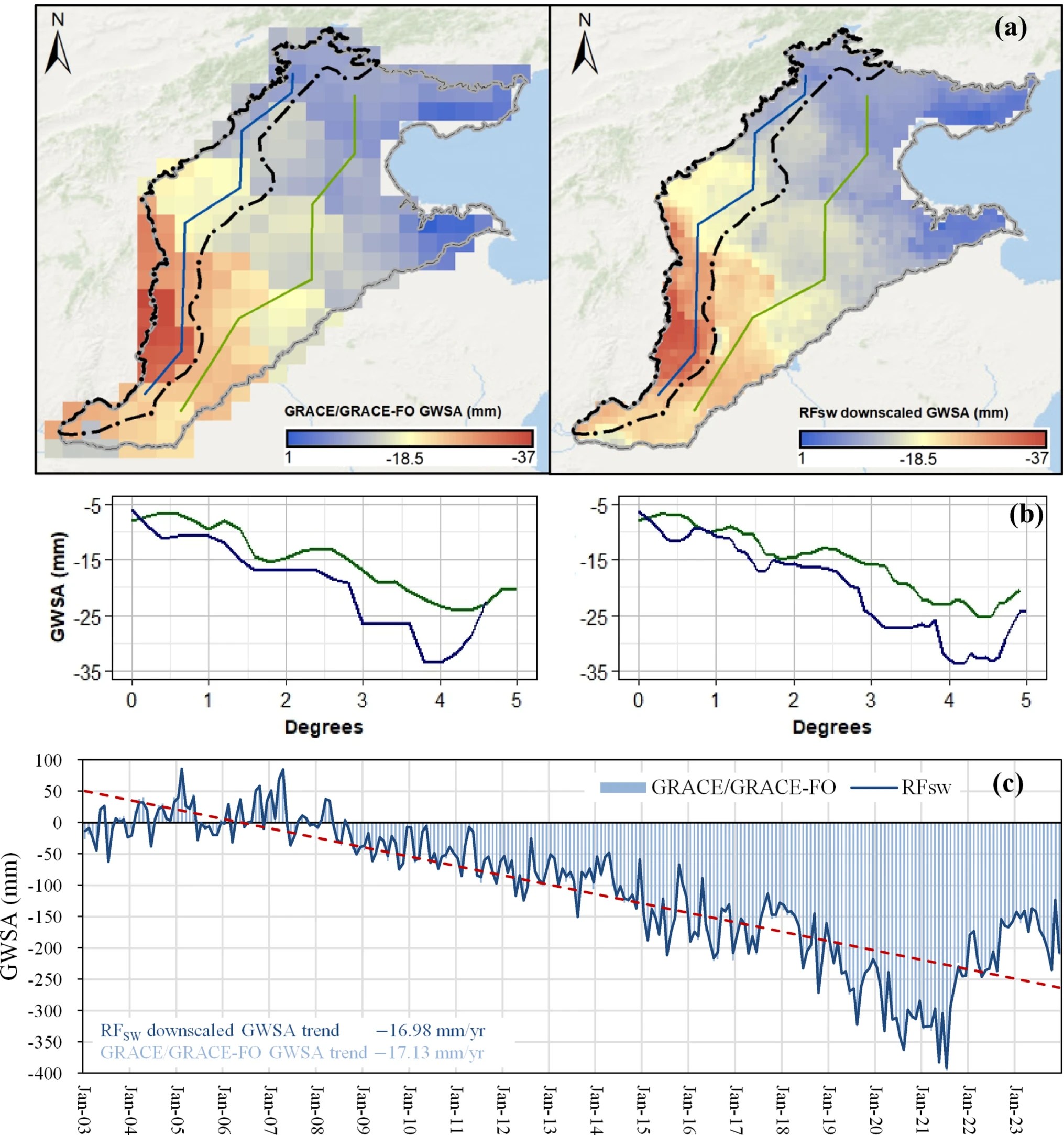

Figure 3. GWSA spatial distribution comparison of GRACE (-FO) and RFSW at a resolution of 0.25° and 0.1° using long-term (2003–2023) Sen’s slope trend, (b) temporal variations at pixel scale, and (c) shows NCP region averaged GWSA monthly temporal variations estimated from GRACE (-FO) and RFSW downscaled GWSA. The red dotted line shows the trend line of the GWSA time series
KEY FINDINGS: GROUNDWATER DEPLETION TRENDS
The downscaled data reveals the “why” and “where” of groundwater loss in the Lower Indus Basin.
1. SPATIAL HOTSPOTS
- Downscaled maps reveal distinct areas of significant groundwater depletion, often corresponding with areas of intensive, large-scale irrigation.
2. DRIVERS OF CHANGE
- CLIMATE VARIABILITY: Reduced precipitation and extreme droughts accelerate depletion.
- IRRIGATION DEMAND: High agricultural demand, particularly during dry seasons, is the primary driver.

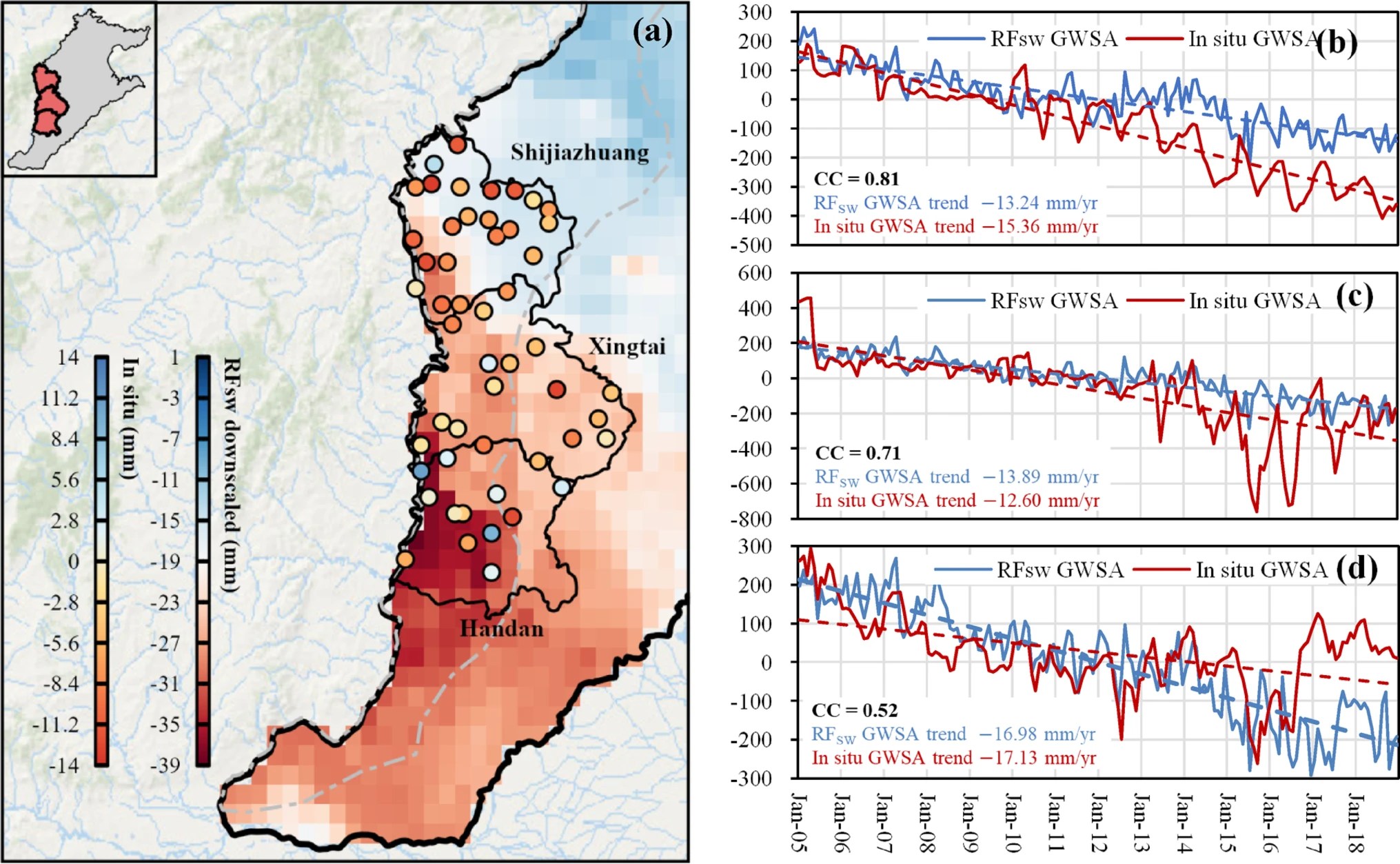

Figure 4. (a) Sen’s slope long-term (2005–2018) spatial variations of the RFSW downscaled and Mann Kendall’s trend of in-situ GWSA values, (b) time series of the RFSW downscaled and in-situ GWSA in Shijiazhuang, (c) Xingtai, (d) Handan regions from 2005 to 2018
Figure 5. The winter wheat spatial distribution in different years over the NCP region
IMPACT: ADVANCING WATER MANAGEMENT
This research provides a powerful, high-resolution tool for regional water managers. By accurately mapping groundwater depletion at a finer scale, policymakers can make data-driven decisions regarding sustainable irrigation practices and climate adaptation strategies.
Find the full publication here: https://doi.org/10.1007/s41748-025-00976-6
